I have not seen these pictures disseminated anywhere other than
on one chinese technology website, IT168,
so I thought I would share. They show Nebulae, the number 2 supercomputer
according to the most recent TOP500 list.
Nebulae is composed of 4640 nodes,
where each node has two Intel Xeon X5650
processors and one Nvidia C2050 GPU, for a total of 9280 processors and
4640 GPUs. Each node is a blade. There are 10 of them per blade chassis,
4 chassis per rack, or 40 nodes per rack. Therefore Nebulae represents at
least 116 racks, not counting networking, storage, and other control equipment.

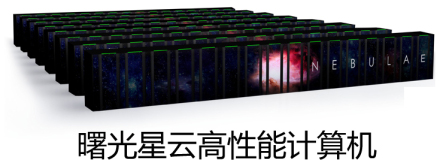

So what can be seen in the above picture is most of it: 8 rows of about 18 racks.
You can find the original pictures in this
IT168
article. Dawning, the designer and manufacturer of Nebulae,
has a
page on it with some technical details that seem interesting. But it is
(literally!) Chinese to me. And with so much text in images, Google translate
is not much of any help. I need to learn Chinese.
The animosity that Microsoft displays towards Google is stupefying.
Check this out. On both the
Microsoft
Security Response Center blog and the
Security
Research & Defense blog, Microsoft comments:
- "This issue was reported [...] by a Google security researcher."
- "One of Google's security researchers publicly released vulnerability details."
- "The analysis is incomplete and the actual workaround Google suggested is easily circumvented."
- "We recommend not counting on the Google hotfix tool."
What is this about? Tavis Ormandy released details
of a Windows Help and Support Center vulnerability (CVE-2010-1885). He discovered this on his own, as an independent researcher. In fact his advisory states:
"Finally, a reminder that this documents contains my own opinions, I do
not speak for or represent anyone but myself."
This guy just happens to work for Google. Nothing wrong with that, right?
Well Microsoft does not think so. They place the blame directly on Google, and make
sure to mention the name "Google" 8 times in these 2 blog posts, without
ever mentioning Tavis Ormandy's name once, the guy who actually discovered this.
Mike Reavey, Director, MSRC, you should know better, sir. Please apologize.
Angry at Tavis that 5 days' notice was not enough to patch the flaw?
Blaspheme him, not Google. Do not use this full disclosure event as a vehicle
to carry your frustration towards Google.
Like many Java-based products, we use Ant
to build NeXpose. While helping a
coworker investigate performance issues, I noticed that Ant tasks creating jar
archives containing many files were taking a lot of CPU time.
I want to demonstrate via this blog post how a simple performance problem can be easily
investigated and fixed. The resulting bugfix (1-line patch) was contributed to Ant
and is included in version 1.8.1 which was released on 2010-05-07.
The Ant task creating the jar archive looked like this:
<jar destfile="foo.jar" basedir="directoryname"/>
The directory contained about 50 thousand files, and
running the Ant task seemed to be about three times slower than
creating the archive from the command line with the jar(1) command (103 sec vs. ~30 sec).
So I peeked at what Ant was doing with the excellent VisualVM debugger. When looking at a
couple of stack traces taken at a random intervals, I noticed many were similar to
this one:
"main" prio=10 tid=0x0000000041767000 nid=0x2174 runnable [0x00007fe89d117000..0x00007fe89d118eb0]
java.lang.Thread.State: RUNNABLE
at java.util.Hashtable.contains(Hashtable.java:270)
- locked <0x00007fe81c738ff0> (a java.util.Hashtable)
at org.apache.tools.ant.taskdefs.Zip.zipFile(Zip.java:1448)
at org.apache.tools.ant.taskdefs.Jar.zipFile(Jar.java:602)
at org.apache.tools.ant.taskdefs.Zip.zipFile(Zip.java:1551)
at org.apache.tools.ant.taskdefs.Zip.addResources(Zip.java:792)
at org.apache.tools.ant.taskdefs.Zip.addResources(Zip.java:853)
at org.apache.tools.ant.taskdefs.Zip.executeMain(Zip.java:499)
at org.apache.tools.ant.taskdefs.Zip.execute(Zip.java:416)
[...]
Why do I see Ant apparently spending so much time in Hashtable.contains() in my
handful of stack trace samples, when a hashtable lookup has a time complexity
of O(1)? Looking at Ant's code, I saw that it was using this hashtable as a
set —storing the same object as a key and value— to represent
entries that already exist in the jar archive, so that it could determine if a
file to be added to the archive needs to have an entry created or updated.
There were 50 thousand files in the archive. Worst case, a hashtable lookup costs a RAM
access, or roughly 50 ns on a modern processor if not cached in the CPU caches.
So 50k lookups should take a handful of milliseconds. However in my
case it was apparent that Ant was spending about a minute doing nothing
but lookups. I was more familiar with the Map class rather than the Hashtable
class, so I glanced at the Hashtable.contains()
documentation to confirm a suspicion...
public boolean contains(Object value)
Tests if some key maps into the specified value in this hashtable.
Yikes! This method checks for values instead of keys!
Instead of doing an O(1) lookup with containsKey(), contains() iterates over all values for
each file to be added to the archive. This explains the approximate minute of
wasted CPU time: 25000 (average iterations) * 50000 (files) * 50 ns = 62.5 sec.
I changed the contains() call to containsKey() and recompiled Ant. It sped
up the jar creation by 3x by shaving a minute from the execution time (103 sec
down to 32 sec). I submitted a bug report (bug 48755 - Zip
task does O(n) lookup in hashtable) and a patch to the Ant developers. The
fix is included in Ant 1.8.1 which was released last month.
The whole investigation and fix took less than an hour. This is a
great demonstration of the advantages of open source tools. Anyone can fix anything
to help everyone.
Today I am finally doing an official release of
unrarhp, a Unix command line
proof-of-concept brute forcer to recover the passwords of RAR archives encrypted with
the RAR 3.x "-hp" option. As far as I know this is the only RAR "-hp" brute
forcer that is open source and free. I wrote this cracker back in 2004 for a
computer security contest organized at the Epitech french computer science school. I had
to study the source code of the Unix version of "unrar", because at the time,
the format of encrypted archives was not documented (not sure if it is today).
There are 2 different ways to encrypt a RAR archive; the rar CLI tool exposes
them through 2 options:
- -p option, which encrypts only the content of the files in the
archive, while file metadata (filenames...) are not encrypted
- -hp option, which encrypts the internal block headers that contain
file metadata, as well as the content of the files
I have never looked at the -p encryption, unrarhp works against archives
encrypted with -hp only, but the 2 encryption mechanisms are definitely based on
the same concepts. When encrypting a RAR archive with "-hp", a
random 64-bit salt is generated by RAR, the UCS-2 encoded password is
concatenated to the salt, the salt-password pair is hashed with 262144 rounds of
a function based on SHA-1, which eventually outputs a 128-bit IV and 128-bit
key used to AES-encrypt data blocks in ECB mode.
As a side remark, note that the fact that AES is used in ECB mode, and the
fact that the same salt is reused for each file in the archive are serious
cryptographic mistakes. This may open some yet undiscovered attack paths...
Unrarhp verifies passwords by using a trick that I am not sure any
other RAR brute forcer uses: encrypted RAR archives seem to always contain
an "end-of-archive" block that is the constant 7-byte plaintext blob
"c4 3d 7b 00 40 07 00", so unrarhp simply compares the decrypted data
with this known plaintext . The code is completely unoptimized and re-uses
the SHA-1 and AES implementation of RAR, but it works. I
first posted the
code on the BarsWF forum to help others, and I believe IvanG (author of
rargpu) wrote his brute
forcer with the help of my code.
For more information and how to use the brute forcer, see the README file
in the unrarhp tarball.
|
|
